Application & drawing review
Define the load, operating environment, interfaces, dimensions and drawing revision.
NINGBO WINSTONE INDUSTRIAL TECHNOLOGY CO., LTD. / SINCE 1994
Warehouse &
material handling
equipment.
Over 30 years of manufacturing experience. Warehouse and material handling solutions for distributors, integrators and industrial buyers worldwide.
OEM & Private Label • Product Development • Spare Parts Support
FROM RECEIVING TO DISPATCHEquipment for every step.

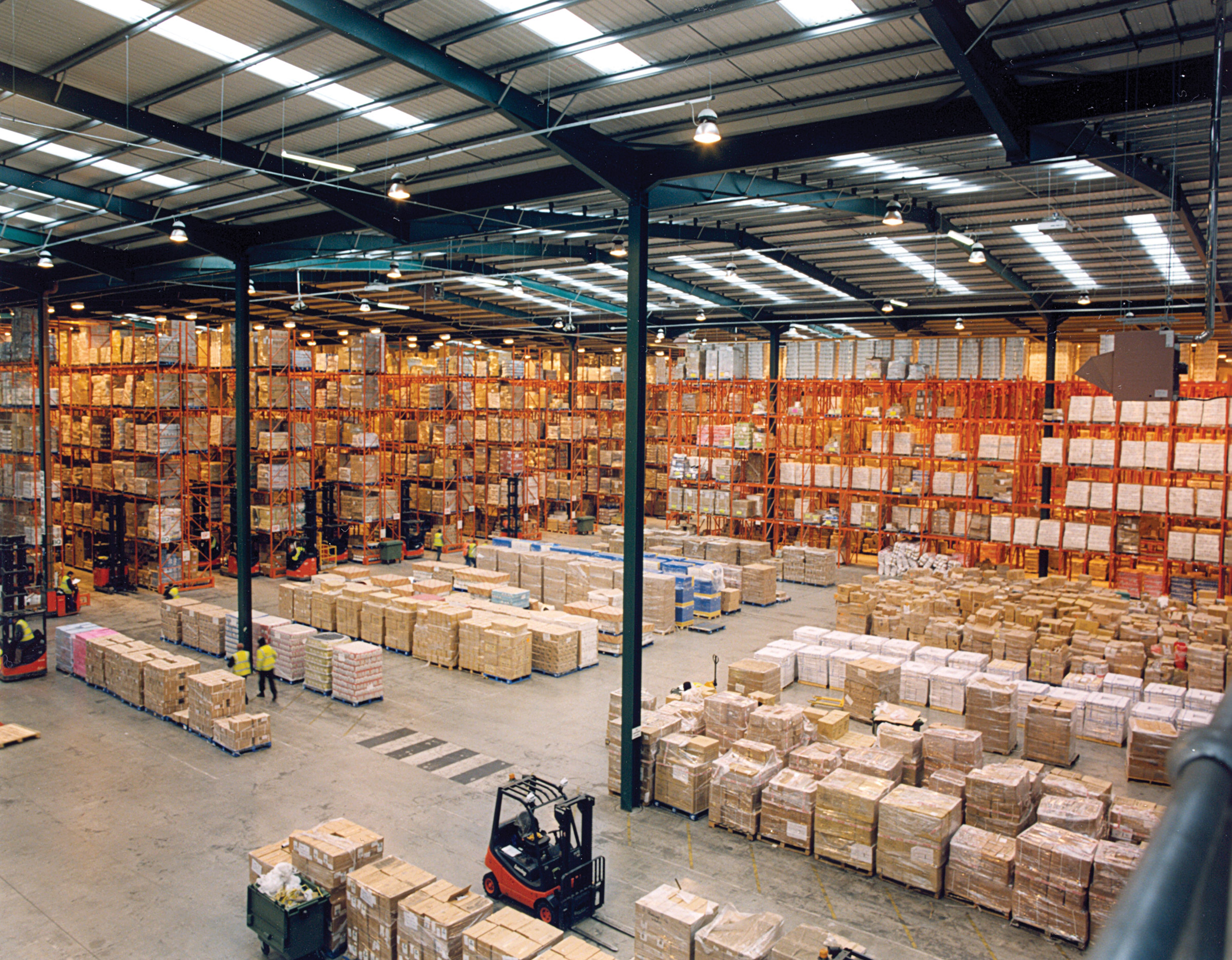

Warehouse application reference01Storage &
Organization
Organization
02Movement &
Loading
Loading
03Safety &
Access
Access
04OEM &
Parts Support
Parts Support
ABOUT WINSTONEWHS
Your manufacturing partner.
Since 1994.
WINSTONEWHS is the warehouse and material handling brand of Ningbo Winstone Industrial Technology Co., Ltd., a China-based manufacturer with a history dating back to 1994.
With over 30 years of industry experience, we serve distributors, dealers, integrators and industrial customers worldwide. Our focus is on practical equipment, application-specific requirements and long-term product support.
Our manufacturing approach brings together product development, production coordination and quality control. OEM and private-label programs, repeat production and spare parts support help customers build and maintain their equipment ranges.
Warehouse Equipment Distributors · Material Handling Dealers · Industrial Packaging Distributors · Rack & Shelving Dealers · Conveyor Integrators · Industrial Buyers

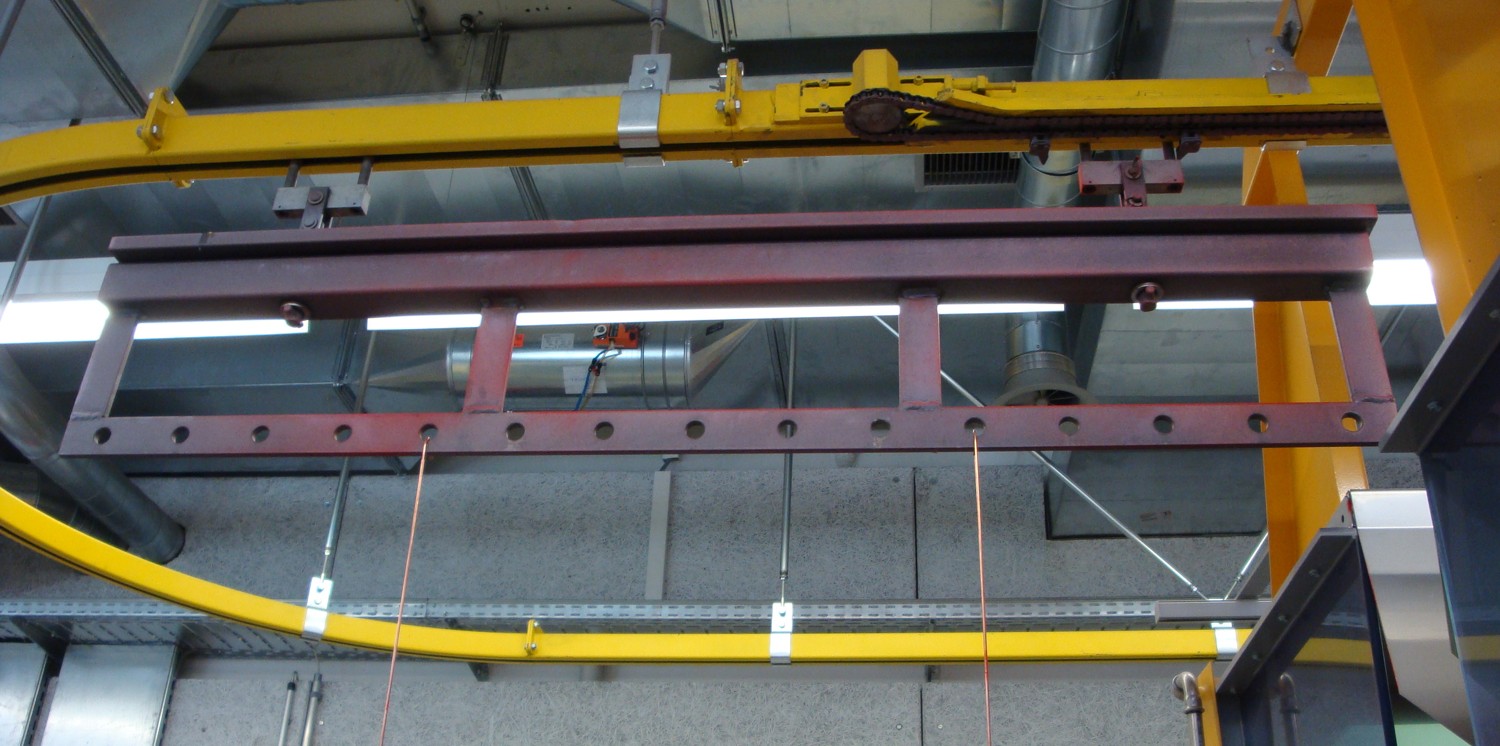

FROM DRAWING TO FINISHED PRODUCT
A defined route
for every order.
Manufacturing experience since 1994. The production route and acceptance criteria are defined around each product and its application.
Material & component selection
Specify material grade, section size, bought-in components and finish requirements.
Cutting, forming & fabrication
Select the required cutting, bending, welding or molding route for the product.
Surface preparation & finishing
Agree preparation, coating or finishing method, color and inspection criteria.
Assembly & verification
Check fit, dimensions, movement and the agreed functional or load-test requirements.

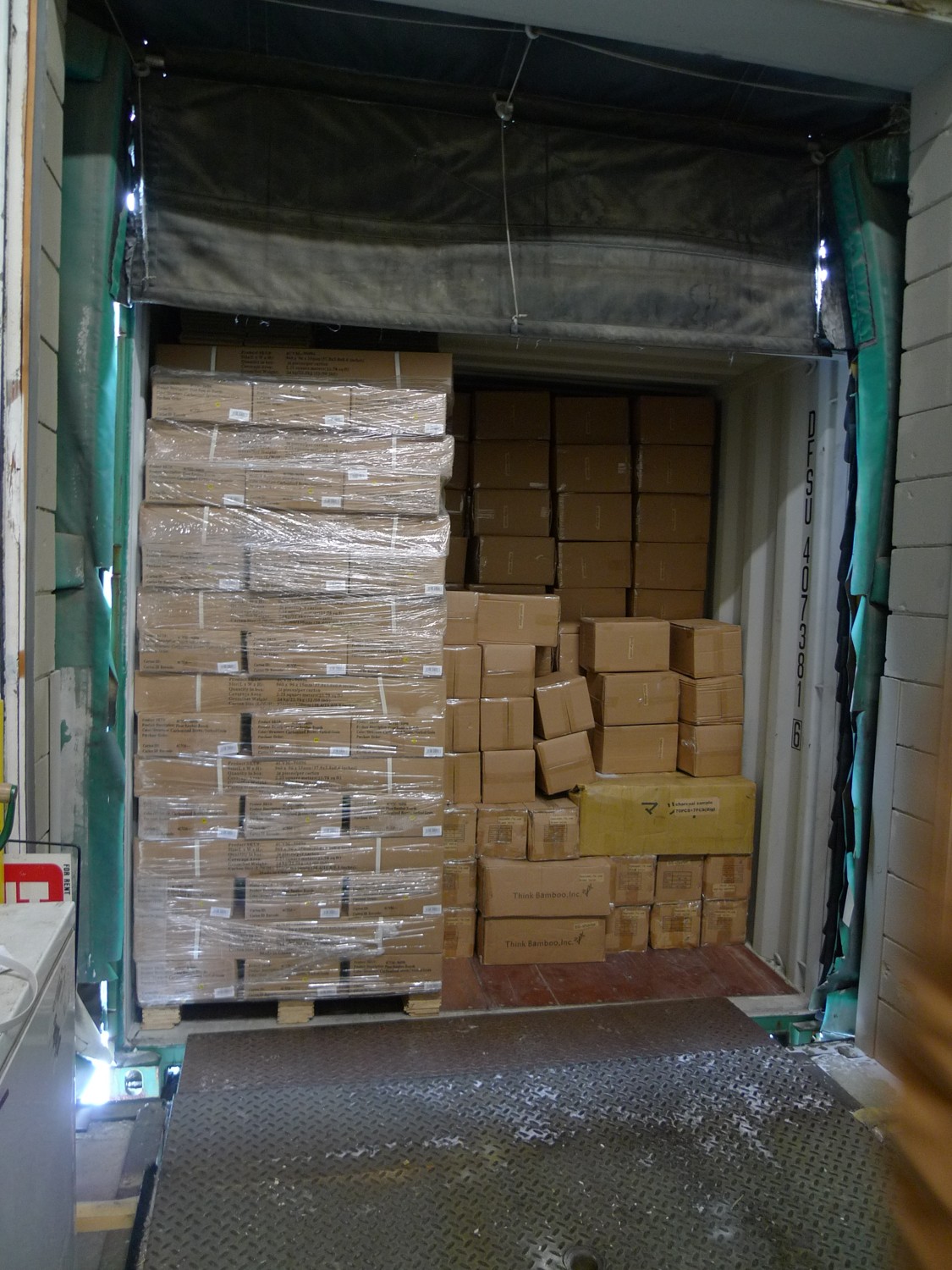

Packing & shipment release
Match labels, quantities, protection, documents and loading details to the order.
FABRICATION & ASSEMBLY
From material to
working equipment.
Cutting & machining
Control cut length, hole locations, edge condition and interface dimensions for plate, tube and sections.
Forming & bending
Define bend direction, radius, angles and critical dimensions on the approved drawing.

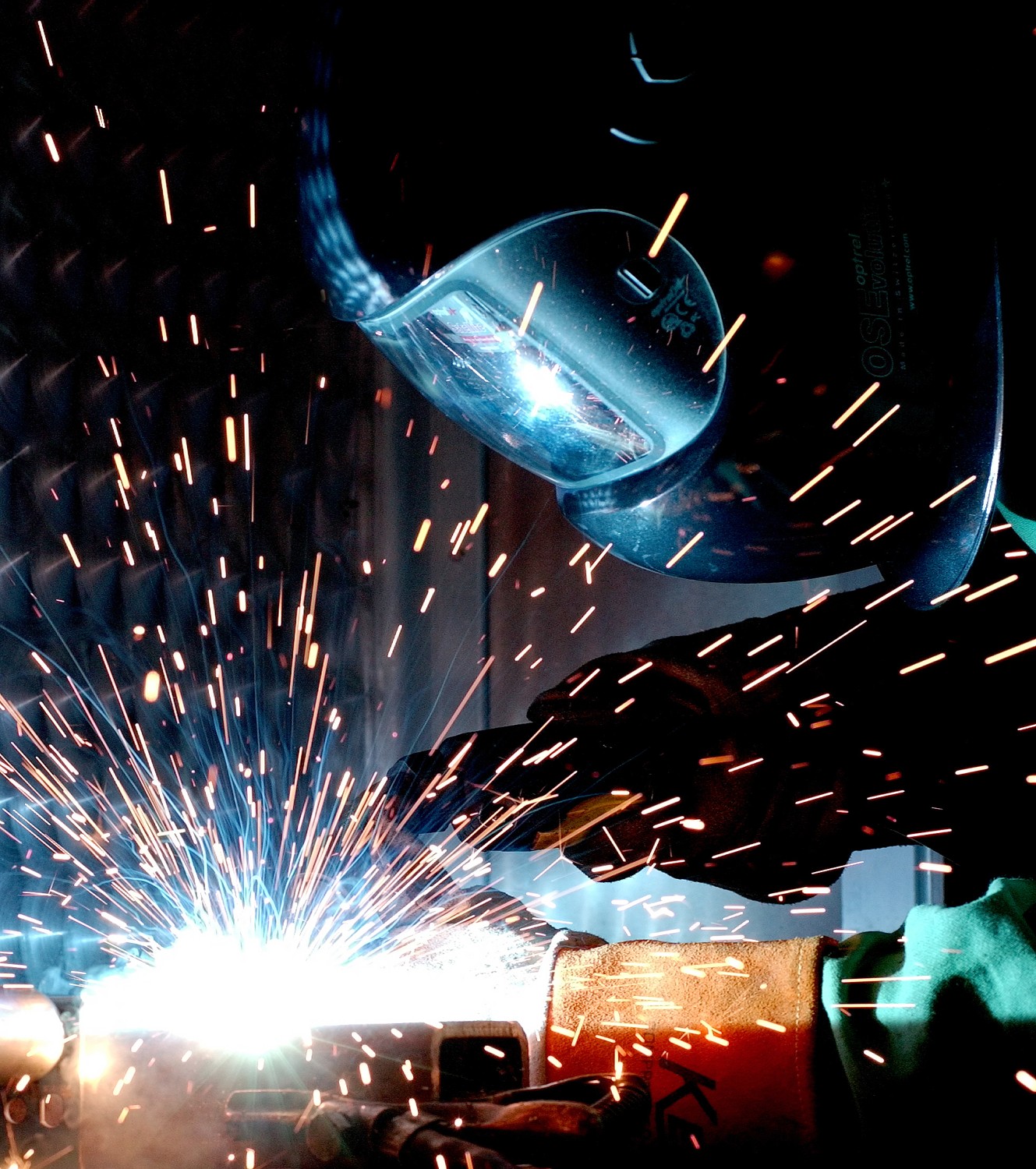

Welding & fabrication
Specify weld method, joint preparation and weld size. Fixtures help control alignment and squareness.
Assembly & adjustment
Fit wheels, rollers, fasteners and selected drive or hydraulic components. Check clearances and service interfaces.
MATERIALS & SURFACE FINISHES
Specify the material.
Define the finish.

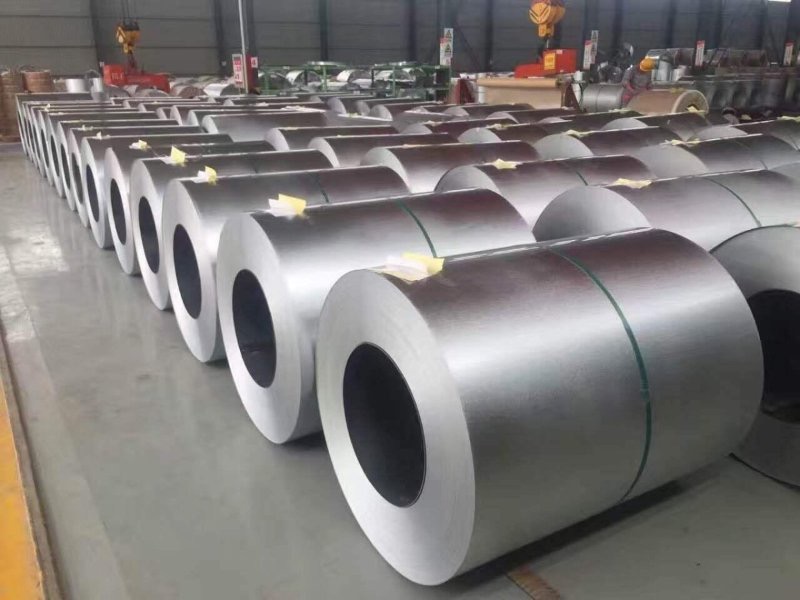

Carbon steel
Frames, racks and welded structures. State grade, thickness, tube/section size and load basis.
Stainless steel
Washdown or corrosion-sensitive use. State alloy grade, surface finish and cleaning exposure.
Aluminum
Weight-sensitive handling equipment. State alloy, temper, joining method and required duty.
HDPE / PP
Pallets, bins and returnable packaging. State resin, impact and temperature needs; verify chemical compatibility.

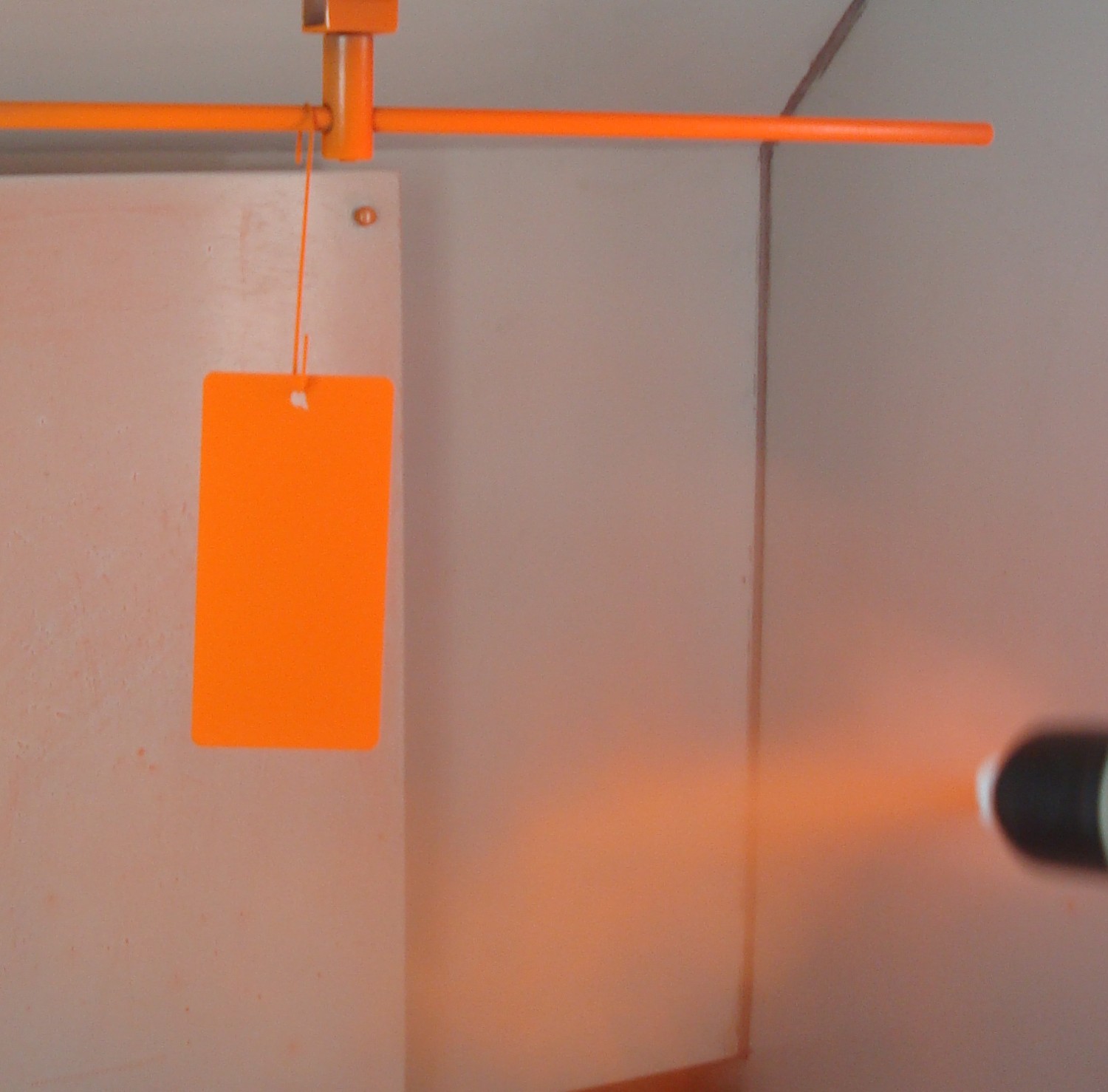

Finish options
Powder coating, wet paint, zinc plating, hot-dip galvanizing and stainless surface finishing, according to material and product design.
Agree color, preparation, coating thickness, masking and acceptance criteria before ordering.

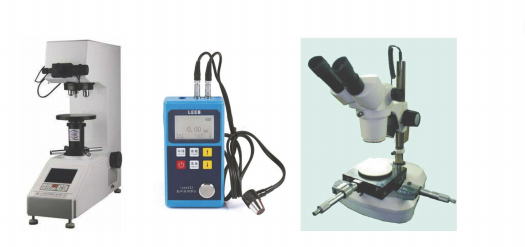

QUALITY PLANNING & INSPECTION
Check the details
that affect the job.
Incoming materials
Material identity, section size, visible condition and required supplier documents.

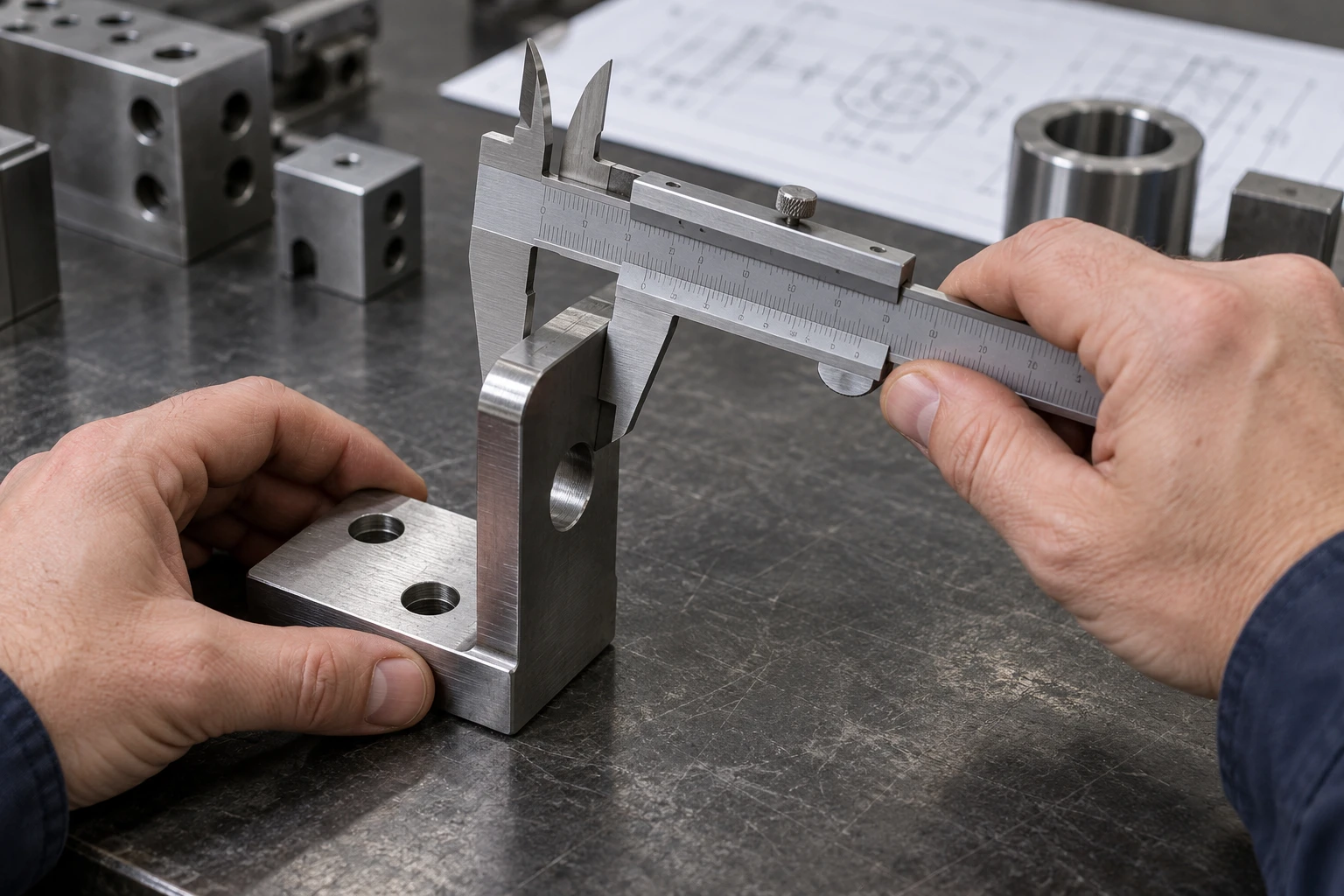

Fabrication checkpoints
Critical dimensions, hole patterns, squareness, weld appearance and assembly fit.
Finish inspection
Surface appearance, color match and agreed coating or surface measurements.
Functional verification
Wheel and roller movement, brakes, latches, adjustments and powered functions where applicable.
Load & performance verification
Agree the load case, support conditions, test method, acceptance criteria and required report for the selected configuration.
Final release
Order quantities, labels, packing protection, accessory kits and the agreed document set.
Drawings, inspection records, material documents, manuals and test reports are agreed per order. Certifications are product-specific.
OEM & PRODUCT SUPPORT
Your specification.
Your brand.
A coordinated brief supports repeat orders and a consistent distributor product range. Share drawings, application requirements and branding preferences.
OEM & private label
Agree dimensions, colors, logos, nameplates, labels and packaging artwork. Approve the drawing or sample before production.
Product range development
Develop a consistent range of standard products. Coordinate dimensions, finishes, accessories and model identification across repeat orders.
Packing & documentation
Select cartons, pallets or crates for the equipment and route. Confirm assembly instructions, accessory bags and packing lists.
Spare parts & repeat orders
Retain model, drawing revision and component references. Match service parts by dimensions and interface details.
OUR PRODUCT RANGE
Explore our equipment.
Storage, material handling and end-of-line equipment for industrial operations.
Explore Product Catalog →FROM REQUIREMENT TO PRODUCT
Share the requirement
Product, specification, quantity and drawings.
Review the supply plan
Confirm configuration, branding and order mix.
Confirm the quotation
Review product scope, documentation, pricing and product requirements.
Confirm production details
Agree drawings, inspection criteria and product documentation.
LET'S SPECIFY YOUR NEXT ORDER
Let’s talk about
your next order.
Send a single product requirement or a product list. Include drawings when dimensions or interfaces are critical.
info@winstoneglobal.com
WhatsApp: +86 138 0666 1202
A clearer brief.
A more useful quotation.
Share dimensions in inches or millimeters, load requirements in lb or kg, and the application environment. Include installation and maintenance requirements where relevant.
THE EQUIPMENT PORTFOLIO
Equipment for every
warehouse operation.
Nine equipment series. Explore product types, compare specifications and find the right configuration for your application.
SELECTION GUIDE
Specify the application first.
A clear brief makes product selection and quotation more efficient.
Define the load
Provide load dimensions, weight, center of gravity, handling frequency and support conditions. Static, dynamic and rack capacities are different requirements.
Confirm the fit
Start with inches and pounds, alongside millimeters and kilograms. Check pallet footprint, fork openings, aisle widths and clearances.
Describe the environment
State indoor or outdoor use, temperature, washdown, corrosion exposure, floor condition and site electrical requirements.
Share the configuration
Include drawings, interface photos, material and finish, quantities, packaging, spare parts and branding.
Review the specification
Compare the published reference configuration, then confirm final supply dimensions, ratings and drawings in your quotation.
